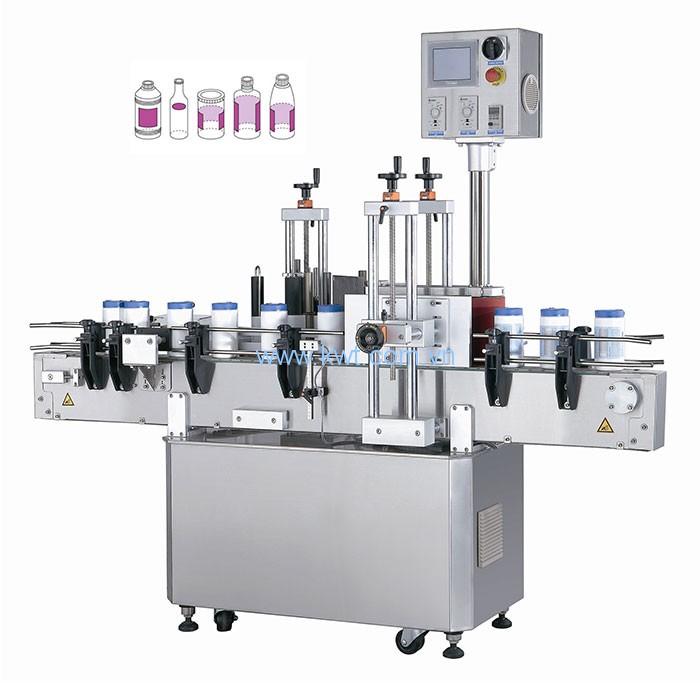

POSITIONING WRAP-AROUND LABELING MACHINE
Application:
The KWT-515C is designed for wrap-around labeling on cylindrical bottles and containers. It can be incorporated with a line or operated individually.
Features:
- Machine main construction by stainless steel SUS 304 and aluminum alloy
- Mitsubishi PLC Control system with digital touch screen
- 3-phase stepping motor and driver
- 50 job set-up can be stored in memory for easy recall.
- Available for position label for round bottles with a handle.
- Apply one or two labels at a time on the bottle.
Technical specification:
| Model | KWT-515C |
| Label Width | Type A:10-120mm, Type C:10-180mm, Type D:10-220mm |
| Label Length | 15-300mm |
| Material of Label | Pressure Sensitive Label in Roll Form |
| Product Size | W:40-100mm, H: 50-300mm |
| Diameter of Label Roll | ID:76mm, OD:360mm |
| Labeling Speed | 12-25 m / min. |
| Product Consumption | 0.8KW |
